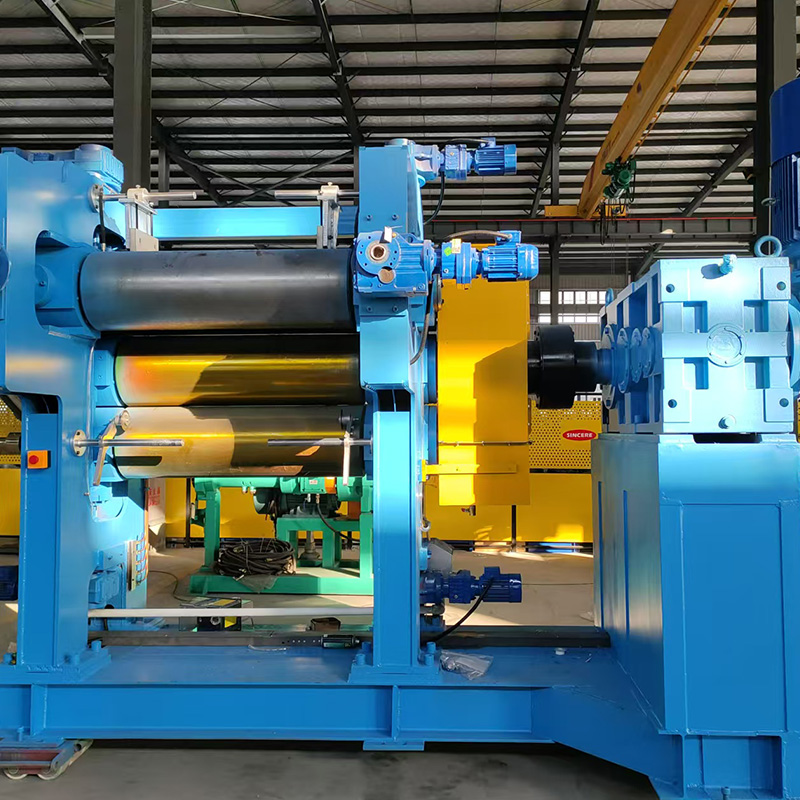

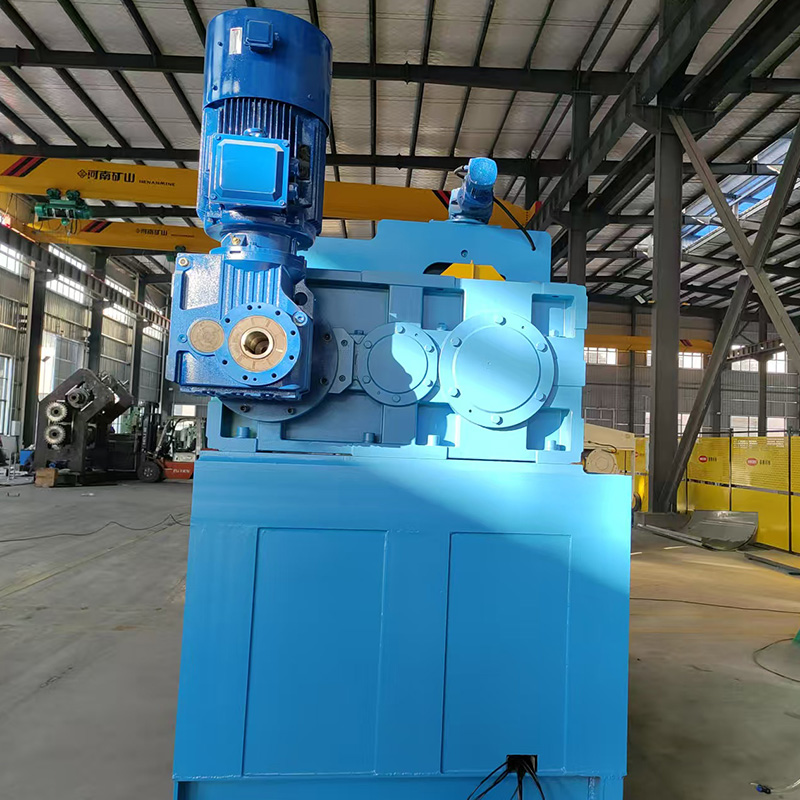

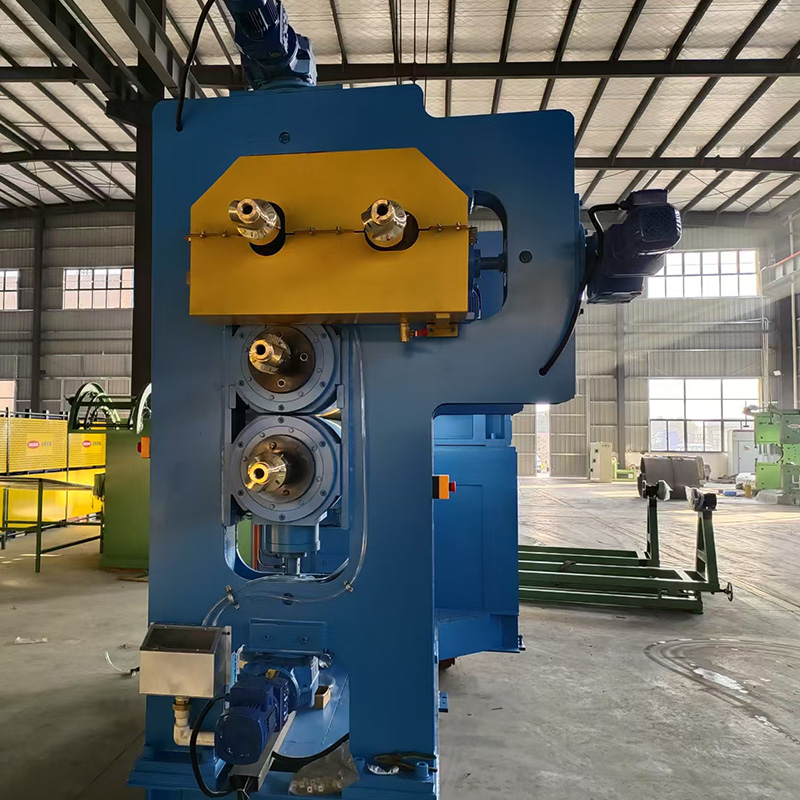

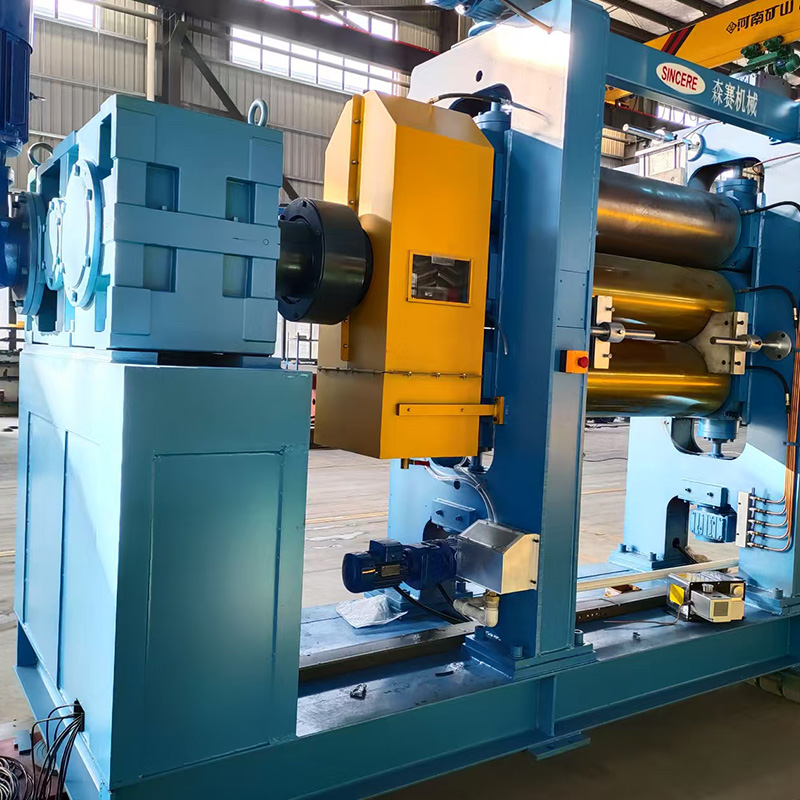

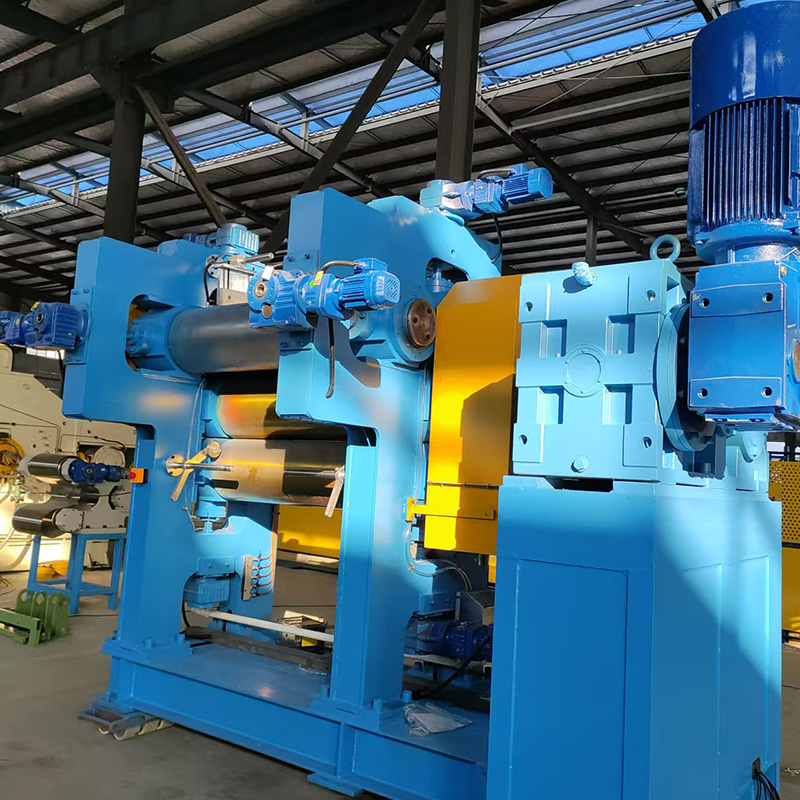

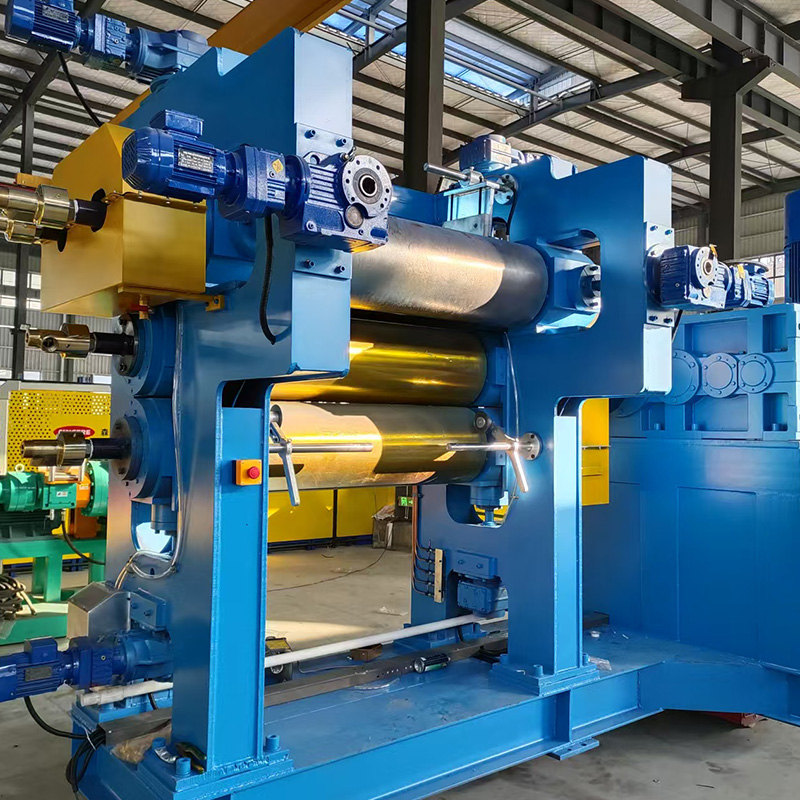

4 Rolls Rubber Calender Machine

  • It is mainly used for one-face and double face, once continuous coating rubber sheet of fiber cord, canvas, and other woven materials, sheeting rubber stock, calendering thin rubber sh of for inner liner, and an airtight layer of meridian tyre.

Contact Us
PREV：3 Rolls Rubber Calender MachineNEXT：5/6 Roller Plastic Calender Machine
Describe

· Roller is peripheral drilled, the heating or cooling effect is more uniform.
· The roller is equipped with a shaft crossing, a preload, and a reverse bending device to ensure the precision of calendered products.
· Roller space can be adjusted manually or by an electric motor.
· Emergency stop is available for protecting operators and equipment.
· Electric control adopts imported PLC, guarantee control on the safe side, easy operation, and high automation.

Specification
Model XY4S-400X1200 XY4S-450X1400 XY4S-560X1600 XY4S-610X1730 XY4S-660X1980 XY4S-710X2250 XY4S-760X2500
Roll diameter 400 450 560 610 660 710 760
Roll working length 1200 1400 1600 1730 1980 2250 2500
Middle roll liner speed 3-30 3.5-35 3.5-35 5-50 5-50 5-50 5-50
Min thickness of the product ≥0.20 ≥0.20 ≥0.20 ≥0.20 ≥0.20 ≥0.20 ≥0.20
Calendering width 1000 1200 1400 1500 1700 2000 2200
Motor power 22x4 37x4 37x4 75x2 90x2 110x4 132x4 160x4
Overall hdein ior (LxWxH) 5528x3300x3600 6025x3300x3800 6025x3300x3800 8010x4738x4837 8850x5080x5210 8850x5050x5210 12280x6500x5900
Weight 25 30 33 65 73 82 90
