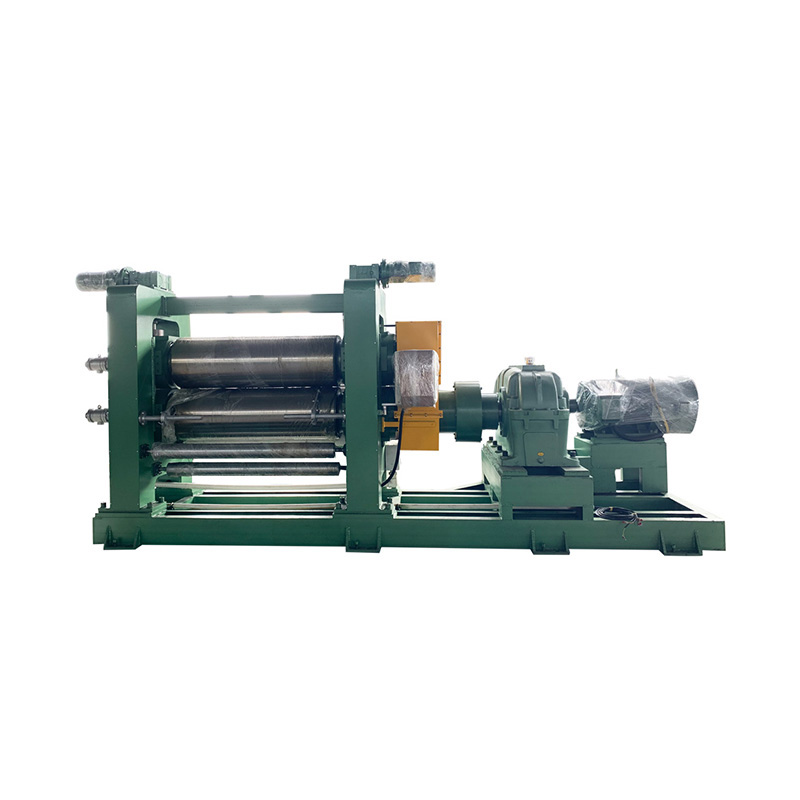

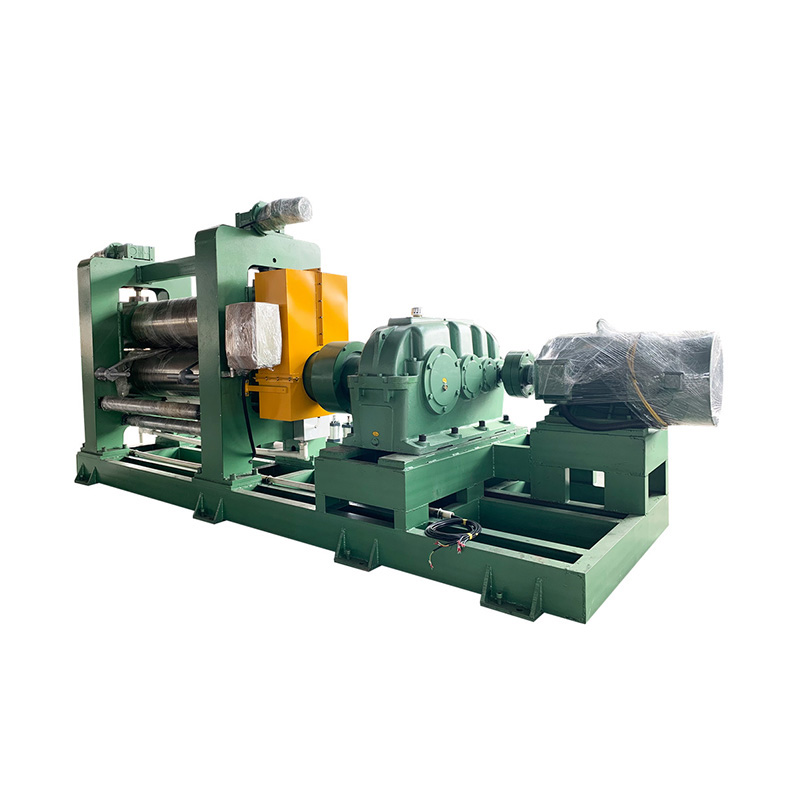

2 Rolls Rubber Calender Machine

  • It is mainly used for calendering rubber products such as tyres, conveyor belts, rubber sheets, etc.

Contact Us
PREV：No previous articleNEXT：3 Rolls Rubber Calender Machine
Describe

· The roll is made of chilled cast iron alloy, equipped with a rotating joint.
· The seal structure with a special design can eliminate the leaking phenomenon of lubricating oil
· The calendar is equipped with rolling bearings.
· The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
· A perfect emergency stop device can ensure the safety of the person and equipment.

Specification
Model XY21-305X900 XY21-360X1120 XY21-400X1200 XY21-450X1400 XY21-510X1530 XY21-560X1600 XY21-610X1730
Roll diameter 305 360 400 450 510 560 610
Roll working length 900 1120 1200 1400 1530 1600 1730
Driving roll liner speed 1.7-17 2-20 2-20 2-20 2-20 2-20 2-20
Max. product width 700 900 1000 1200 1300 1400 1500
Min. product thickness 0.2 0.2 0.2 0.2 0.2 0.2 0.2
Motor power 22 37 45 55 55 75 90
Overall dimension (LxWxH) 4180x1530x2220 4550x1700x1790 4290x1760X2420 5450x1990X2310 5780x1580x2520 5850x1680x2700 6650x2450x3590
Weight 6 9 11 12 21 25 45
