Open Mixing Mill

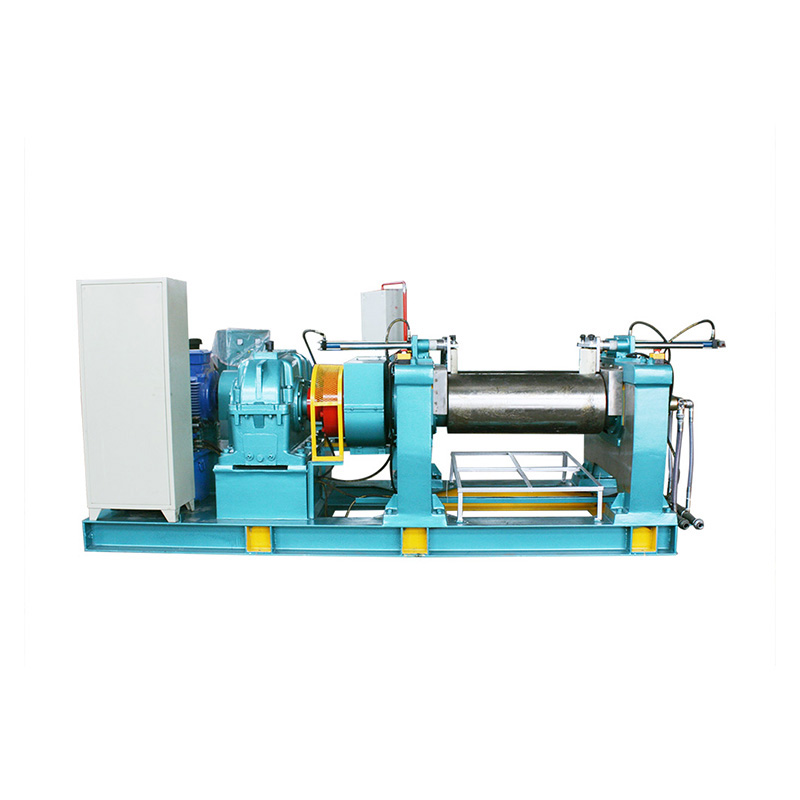

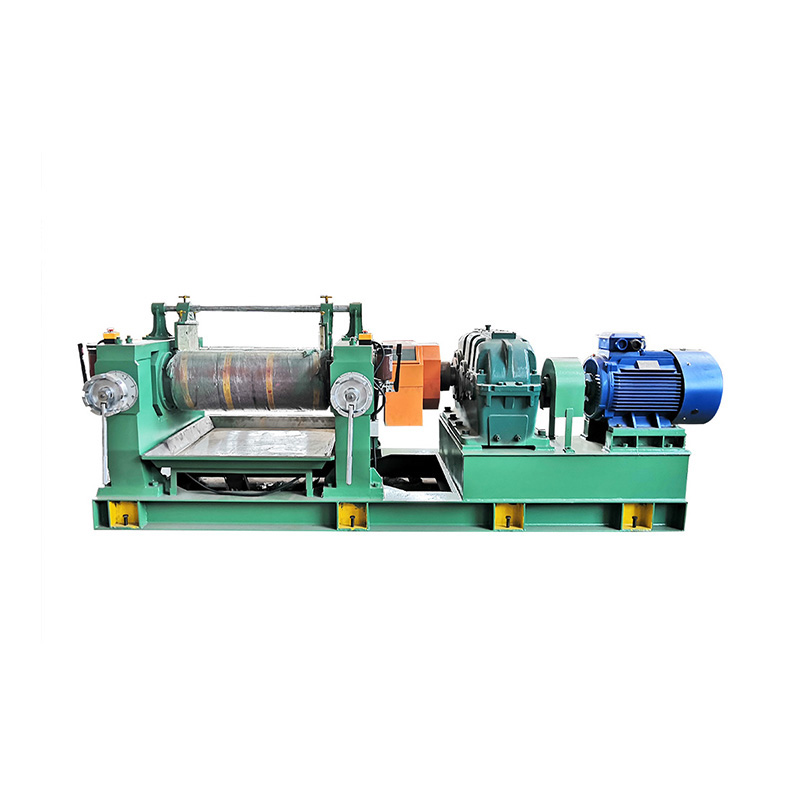

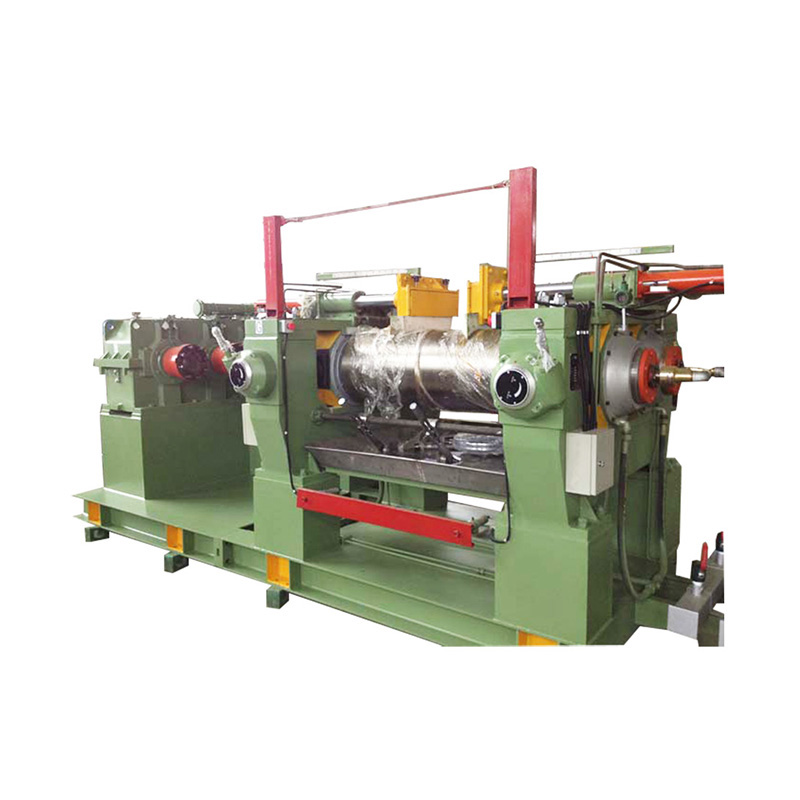

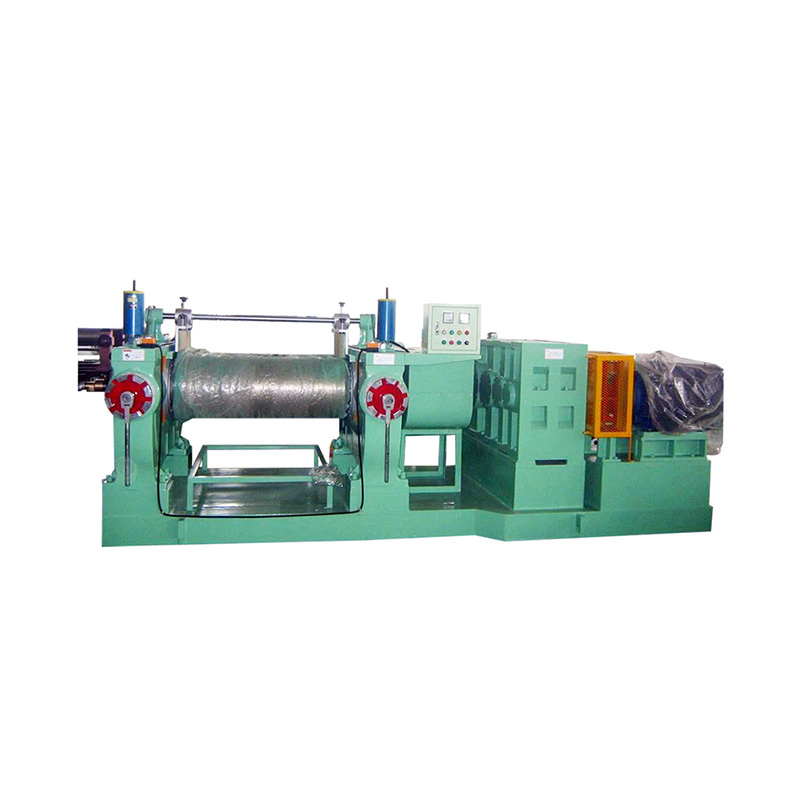

  • The open rubber mixing mill has two horizontally arranged rollers, and the process of rubber (or plastic) mixing is carried out between these two rollers. This machine is simply referred to as an open mill. It mainly consists of rollers, a frame, a gap adjustment device, and a transmission device. The material is drawn into the gap between the two counter-rotating rollers by friction due to their different linear speeds. As the material passes through the roller gap, it undergoes intense shear and compression, causing its temperature to rise and its plasticity to increase, thereby achieving the purpose of rubber mixing. It is mainly used for rubber mixing, warming, sheeting and plasticizing.

Contact Us
PREV：Rubber Banbury MachineNEXT：Twin Screw Feeding Extruder Machine
Describe

· Rolls are made of chilled cast iron alloy, including hollow rolls and a peripheral drilled roll.
· There are three types of nip adjustment: manual, electric, and hydraulic.
· Driven by DC or AC motor and a single motor or a double motor can be chosen.

Specification
Model XK-160 XK-250 XK-360 XK-400 XK-450 XK-550 XK-560 XK-610
Roll Dia 160 250 360 400 450 550 560 610
Roll working length 320 620 900 1000 1200 1530 1530 1930
Front roll linear speed (m/min) 9 16.3 16.7 19.4 21.8 22.5 27.2 30.5
Speed ratio of rolls 1:1.35 1:1.1 1:1.25 1:1.27 1:1.27 1:1.2 1:1.2 1:1.1
Max roll space 4.5 8 10 10 12 16 15 15
Compound feeding capacity 1-2 10-15 20-25 18-35 50 50-65 50-65 140
Motor power 5.5 18.5 30 45 55 110 90 160
Overal size 1120*920*1350 3300*1300*1200 4200*1780*1700 4400*1850*1760 5200*2000*1830 6300*2300*1900 6120*2300*2000 6570*2900*2100
Gross weight 2 3.2 6.5 8 11.4 22 22.5 44
